Behyaar Sanat Sepahan, a knowledge-enterprise company with R&D system, has been servicing in industrial and medical equipments since 1999.Todays, more than 550 engineers and other specialists are employed at the company. We started our service with designing and producing the first Iranian qualified hospital transporter at 1999. Since then we have been manufacturing above 80 products. We cover a huge range of medical devices like hospital furniture, surgical tables, surgical LED lights and high-tech products.
In 2009, we augmented some experts in order to construct our R&D team. As the result of this attention to power of knowledge and R&D experts, we manufactured the first Iranian surgical LED lights, the first Iranian C-arm beds using carbon fibers composit, electrical surgical beds and some high-tech products such as medical linear accelerator for cancer treatment, digital radiology device, multi-slice CT-scan system and Dosimetry equipments for radiotherapy

Introduction

Behyaar Sanat Sepahan, a knowledge-enterprise company with R&D system, has been servicing in industrial and medical equipments since 1999.Todays, more than 550 engineers and other specialists are employed at the company. We started our service with designing and producing the first Iranian qualified hospital transporter at 1999. Since then we have been manufacturing above 80 products. We cover a huge range of medical devices like hospital furniture, surgical tables, surgical LED lights and high-tech products
In 2009, we augmented some experts in order to construct our R&D team. As the result of this attention to power of knowledge and R&D experts, we manufactured the first Iranian surgical LED lights, the first Iranian C-arm beds using carbon fibers composit, electrical surgical beds and some high-tech products such as medical linear accelerator for cancer treatment, digital radiology device, multi-slice CT-scan system and Dosimetry equipments for radiotherapy

Products

Beds and Hoteling

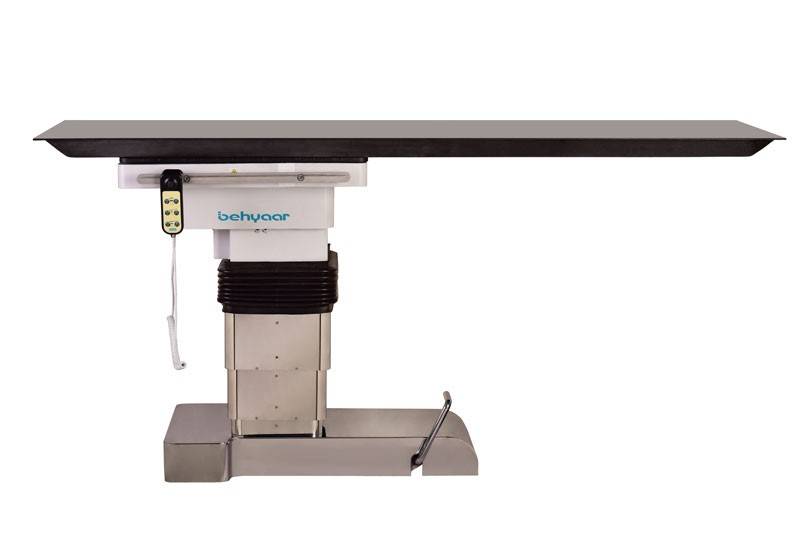

C-Arm Bed
Technical Specifications
All-electric modular
Made entirely of carbon fiber composite without the use of metal parts to allow X-rays to pass through all free parts of the bed
The best option for optimal treatment in the fields of neurosurgery, heart surgery, orthopedic and traumatology surgery, spine surgery, cardiovascular and peripheral angiography, ERCP and endoscopy
Ability to install standard accessories
Has two column motors for changing height and longitudinal slope (Trendelenburg (± 30 °)
Lateral Tilt (T 20 °)
Ability to move in the longitudinal and transverse direction (Optional)
Overall dimensions: 2240 * 600 mm
Height: 810 to 1060 mm
Safe weight: 180 kg
Wheel diameter: 200 mm

Special electric Bed ICU-CCU
Technical specifications of BS-600 ICU bed
Has approval and manufacturing license from the General Directorate of Medical Equipment
It has an aluminum head and a metal-resistant and impact-resistant metal surface
Has a metal frame made of industrial profile with a cross section of 30 * 50 mm with a thickness of 2 mm in the body
It has a serum base that can be installed in 4 corners of the bed
Has accordion bad sides with suitable dimensions to ensure patient safety
Ability to wash with standard solutions
Ability to install weighing system with accurate data transfer
Powdered electrostatic baking in two stages by automatic line with two-layer substructure
Electrical system with IP66 standard, dust and moisture resistant and washable
Has a backup battery for use in emergencies and power outages
Ability to change the slope and height by electric motors
Length: 2185 mm
Width: 990 mm
Height: 620 to 860 mm

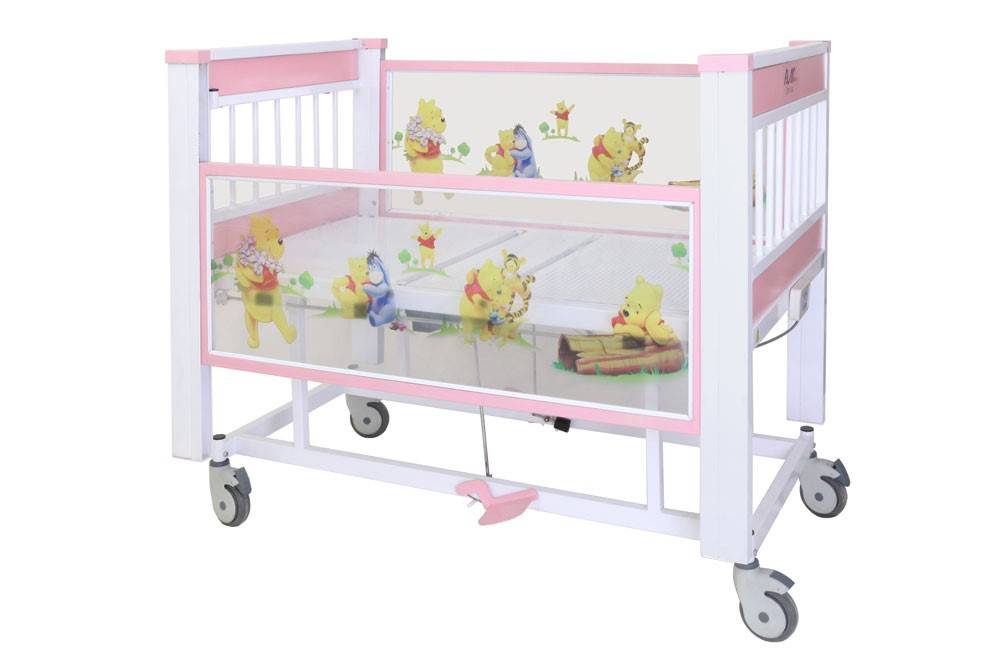

Electric bed for children PICU
Technical Specifications
Has a changeable height
It has bad sliding sides with suitable height and high safety
Has a backup battery for use in emergencies and power outages
Ability to install weighing system with accurate data transfer
Has a metal frame
Made of industrial profile with a cross section of 30 x 50 mm with a thickness of 2 mm in the body
Has approval and manufacturing license
From the General Directorate of Medical Equipment
Length: 1500 mm
Width: 790 mm
Height: 700 mm
Has the ability to clamp and hold the Urine Bag
Has an electrostatic powder paint type
Has a total bearing weight of 250 kg
Has a shower with an angle of 75 degrees
Washability and disinfection
Ability to connect the serum base
It has a 125 mm locked and simple whee

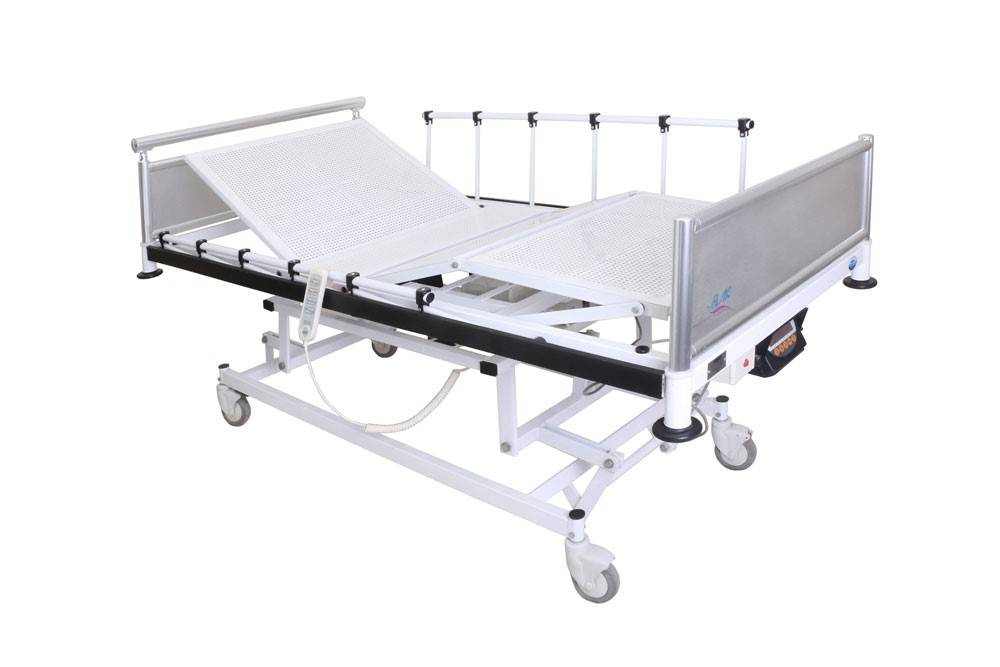

Electric Bed admitted
Technical specifications of BS 500 electric bed
With headboard (aluminum composite)
Three breakers - four pieces
Perforated metal sheet surface with electrostatic powder paint
Fixed bed height: 600 mm
Waist angle breaker: 75 - 0 degrees
Calf angle breaker: 0-30 degrees
Maximum tolerable weight: 250 Kg
Has 2 electric motors, handheld, backup battery (with a capacity of at least 100 movements) with IP66 standard for back and thigh fractures
Has washable motors
Movement and change of leg position with mechanical movement
Wheels antistatic with a diameter of 125 mm, plastic and washable and completely silent
Has a bad metal accordion with resistant electrostatic powder paint
Ability to install the serum base on all four sides of the bed
Ability to install peripherals
Flat metal frame made of industrial profile with a cross section of 30 * 50 mm and has a powder paint by electrostatic method
Ability to wash and disinfect with standard solutions
Patient portability
Ability to use oxygen
Ability to install a high-precision weighing system with instant data transfer to the computer
Length: 2160 mm
Width: 980 mm
Height: 600 mm

Medical Imaging

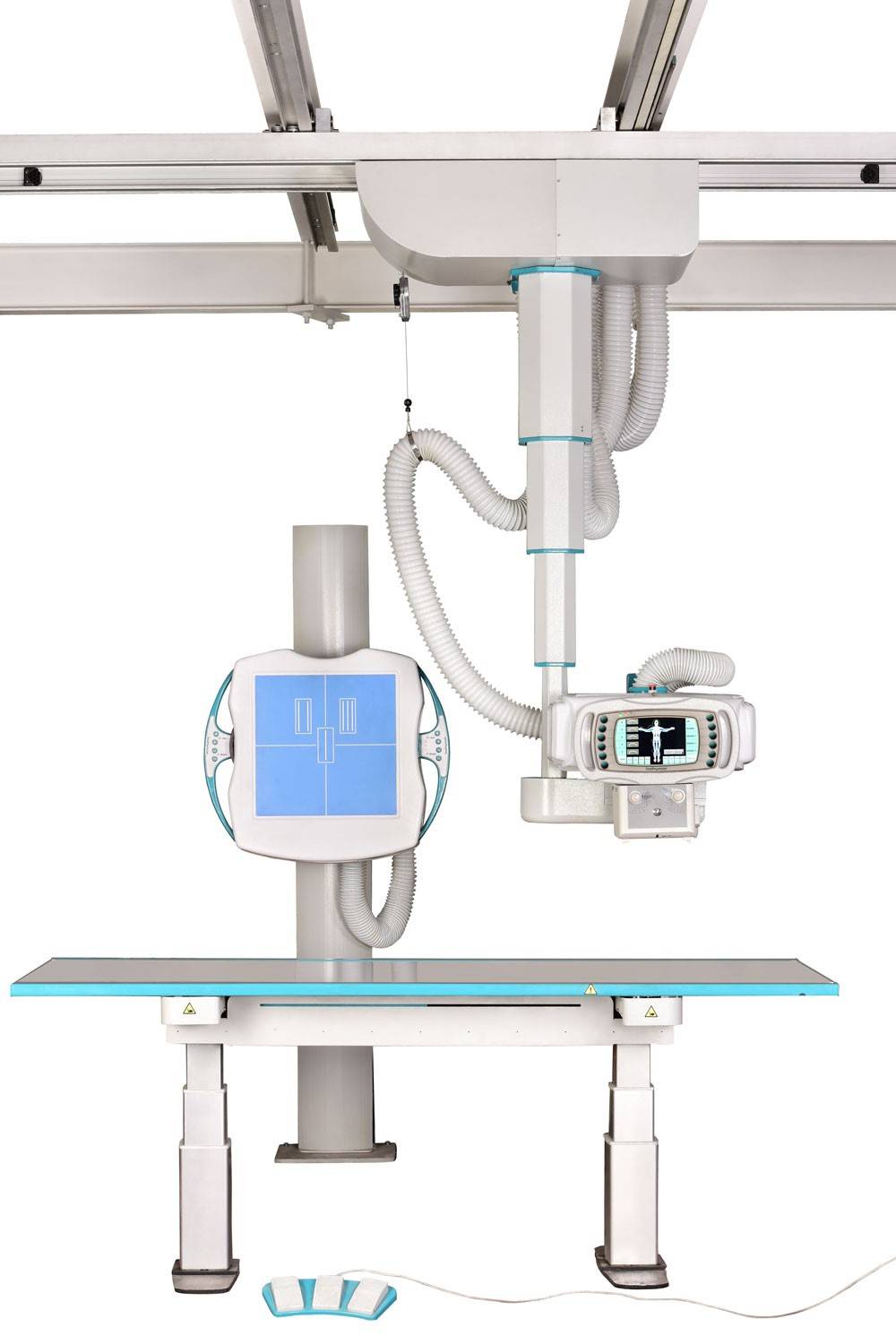

Radiology U-ARM
Bahyaar U-ARM digital radiology device with very high maneuverability is fully automatic in the least space and has the possibility of imaging in different modes.
Ability to move the robotic arm with 4 degrees of freedom automatically and manually.
Dose Measurement System (DAP)
Automatic Exposure Control System (AEC)

Surgery Room Equipments

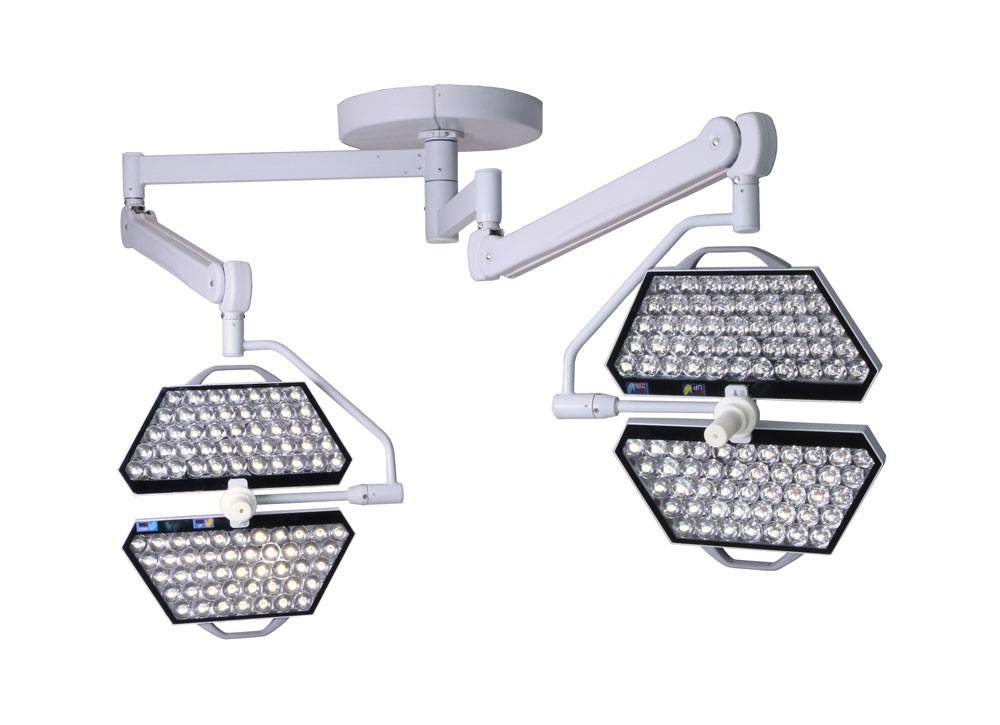

Surgical Light (dual)
Technical Specifications
The first LED operating room lamp produced in the country
Has approval and manufacturing license from the General Directorate of Medical Equipment
Ability to adjust the brightness
Cold light without the need for a filter
With detachable handle with autoclave capability
Ability to add a camera
It has perfectly smooth and adjustable arms
The life of each LED is more than 50,000 hours
Change the optical circle from 19 to 30 cm in the focus model
Color Temperature: 3500-5000k degrees Kelvin
Dimming 10-100%
160,000 LUX
CRI (Ra): 94-96
D10 Field Size: 19cm
D50: 11cm
R9: 94
Wound Depth: 85cm
L1 + L2 (20%): 120cm
Power: 100 W
D50 / D10: 0.58
Focal length: 100cm
Has the ability to create a proximity sensor

Surgical Light (triplet)
Technical Specifications
The first LED operating room lamp produced in the country
Has approval and manufacturing license from the General Directorate of Medical Equipment
Ability to adjust the brightness
Cold light without the need for a filter
With detachable handle with autoclave capability
Ability to add a camera
It has perfectly smooth and adjustable arms
The life of each LED is more than 50,000 hours
Change the optical circle from 19 to 30 cm in the focus model
Color Temperature: 3500-5000k degrees Kelvin
Dimming 10-100%
160,000 LUX
CRI (Ra): 94-96
D10 Field Size: 19cm
D50: 11cm
R9: 94
Wound Depth: 85cm
L1 + L2 (20%): 120cm
Power: 100 W
D50 / D10: 0.58
Focal length: 100cm
Has the ability to create a proximity sensor

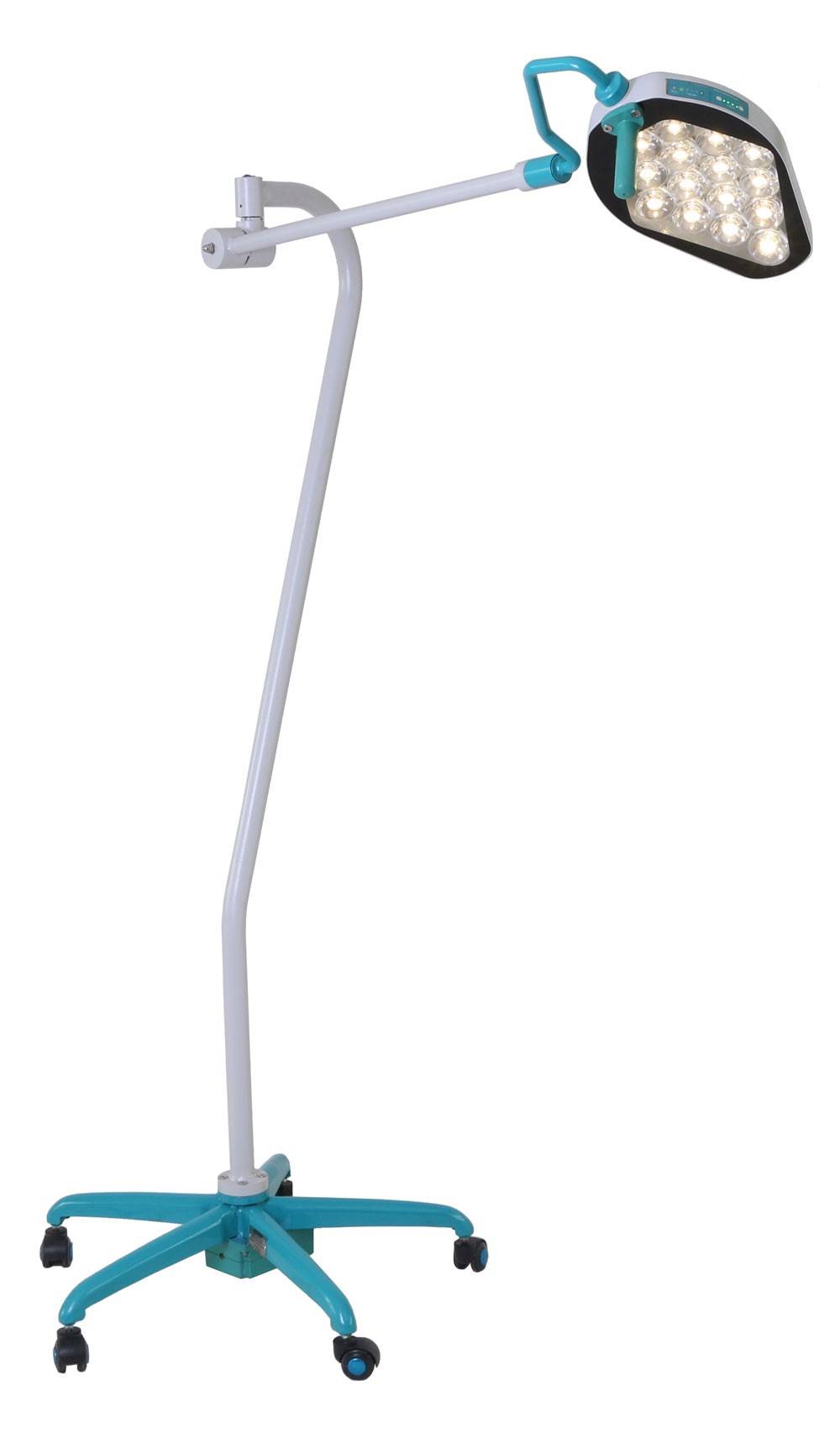

Examination Lights
Technical Specifications
Focal length: 70cm
D50 / D10: 0.61
Life of each LED light: more than 50,000 hours
Power: 15W
Wound Depth: 62cm
Dimming: 20-100%
Ra (CRI): 94-96
R9: 94
Color Temp: 4000k
D50: 8 cm
D10 Field Size: 13cm
Illumination: 70kLux

Radiotherapy
OMID 6MV Single Energy
OMID Medical Linear Accelerator
Behyaar company is honored to introduce OMID LINAC as a state-of-the-art medical linear accelerator to oncology centers. OMID LINAC helps more and more centers to gain the confidence to move towards advanced radiation treatment techniques. OMID LINAC has cost effective design and it is the gateway to modern RT for oncology centers that need to start small and an ideal replacement for cobalt technology. It is simple to operate, robust, allowing more patients to be treated quickly and effectively

Behyaar 3D Water Phantom
The Behyaar 3D water phantom system, is intended forradiotherapy dosimetry measurements. The acquired data could be used for LINAC acceptance testing, TPS beam data commissioning, monitor calibration and accelerator Q

Treatment shield cutting machine (Block Cutter)
Accuracy and precision
Possibility of computer four-axis cutting with an accuracy of ± 0.5mm
It has internal correctors and inspections that reduce the error and reduce its duration
Ability to review the design on the screen
Display packet features that enable skillful manipulation and correction
Simulation of cutting paths before cutting blocks
All functions and settings are computerized
Tray allows you to print the pattern and connect the shield on it
Possibility of digital transfer of block design from treatment design to system
No need to repeatedly match the block to the printed design

mask production machine
N95 mask production machine
Production of four-layer and five-layer masks
Production speed of the mask body before sewing the front: at least 12 per minute
Voltage: 220 volts
Power: 8 kW
Sewing system: Ultrasonic
Dimensions of the device: 510-100-210 cm
Minimum fabric width required: 14.5 cm
Method of sewing the front of the mask: with a separate ultrasonic device
How to install the cache: Manually
